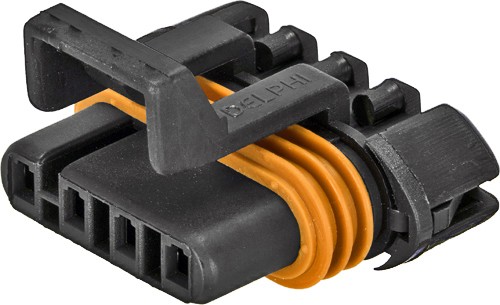

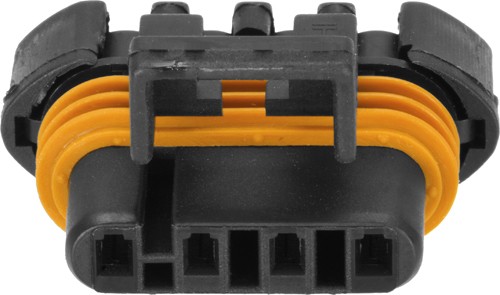

28223 - 4 circuit male MP150.4 series connector kit. (1pc)

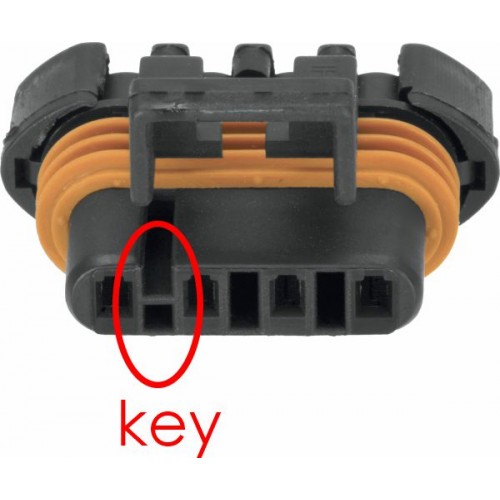

General purpose sealed connector used with ignition & injector systems, sensors and others. Single key.
No mating half offered. Usually mates with embedded receptacle.

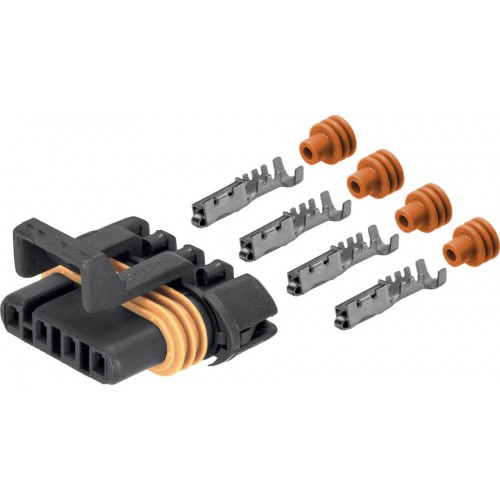

Kit comprises:
1 X housing
4 X 12048074 female terminals suit 3mm automotive / 1mm2 / 16AWG cable
4 X 28602 wire seals suit 3mm diameter cable
Specifications / features:
Suit Metripack 150.4 push to seat connectors
Made from PA66 (Nylon)
10 Amps continuous maximum current rating
Small overall dimensions
Low energy, low voltage capability
Excellent resistance to temperature, chemicals and abrasion
-40ºC to 125ºC temperature range
