28222 - 2 circuit male MP280 series connector kit. (1pc)

28222 - 2 circuit male MP280 series connector kit. (1pc)
28222 - 2 circuit male MP280 series connector kit. (1pc) 28222 - 2 circuit male MP280 series connector kit. (1pc) 28222 - 2 circuit male MP280 series connector kit. (1pc) 28222 - 2 circuit male MP280 series connector kit. (1pc) 28222 - 2 circuit male MP280 series connector kit. (1pc) 28222 - 2 circuit male MP280 series connector kit. (1pc)
Product Code: 28222
Availability: In Stock
Price: $6.81
Ex Tax: $6.19




General purpose sealed connector used with H8 & H11 halogen globes, sensors and others.

No mating half offered. Usually mates with embedded receptacle.

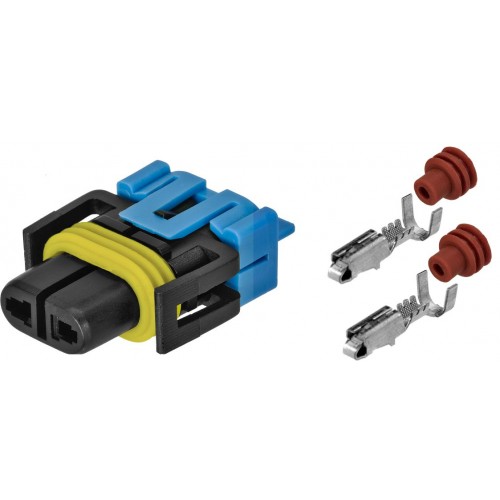

Kit comprises:

1  X  housing

1  X  seal retainer

2  X  12077411 female terminals suit 4 to 5mm automotive / 1 to 2mm2 / 14 to 12AWG cable

2  X  28602 wire seals suit 2 to 4mm diameter cable

Specifications / features:

Made from PA66 (Nylon)

Terminal tab width = 2.8mm

30 Amps continuous maximum current rating

Small overall dimensions

Low energy, low voltage capability

Excellent resistance to temperature, chemicals and abrasion

Standard ISO 2.8mm configuration

-40ºC to 125ºC temperature range
