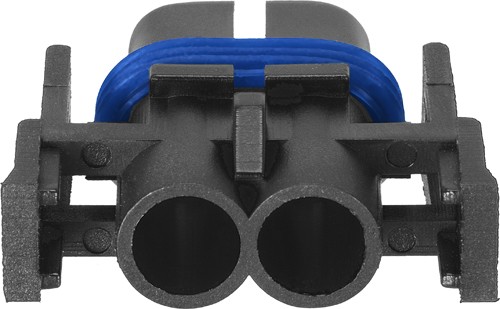

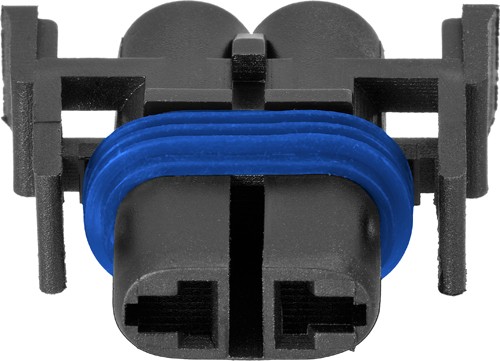

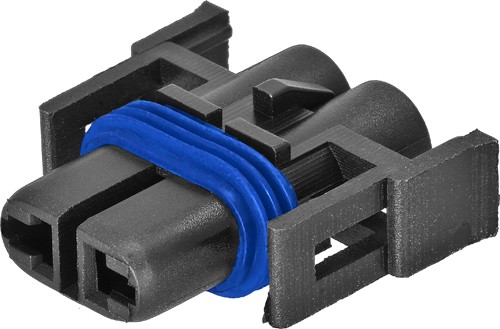

28221 - 2 circuit male MP280 series connector kit. (1pc)
General purpose sealed connector used with H8 & H11 halogen globes, sensors and others.
No mating half offered. Usually mates with embedded receptacle.

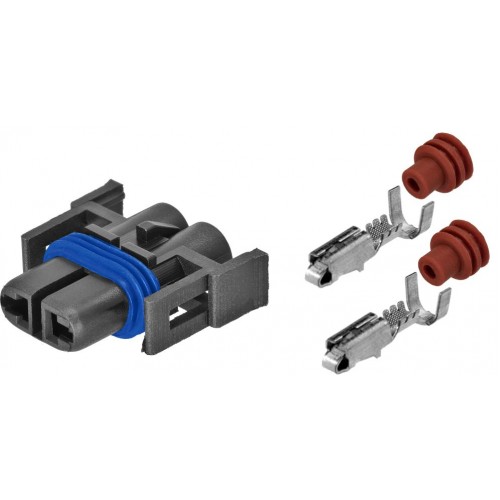

Kit comprises:
1 X housing
2 X 12077411 female terminals suit 4 to 5mm automotive / 1 to 2mm2 / 14 to 12AWG cable

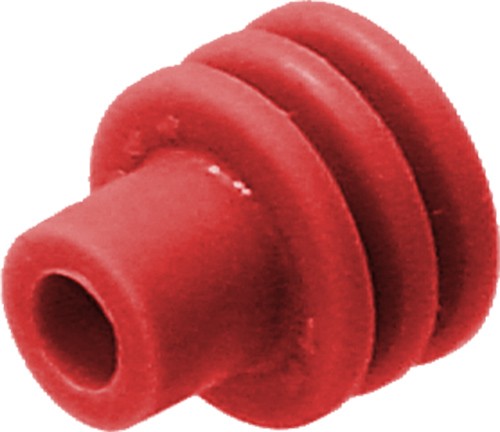

2 X 28602 wire seals suit 2 to 4mm diameter cable
Specifications / features:
Quick release locking tabs
Made from PA66 (Nylon)
Terminal tab width = 2.8mm
30 Amps continuous maximum current rating
Small overall dimensions
Low energy, low voltage capability
Excellent resistance to temperature, chemicals and abrasion
Standard ISO 2.8mm configuration
-40ºC to 125ºC temperature range
