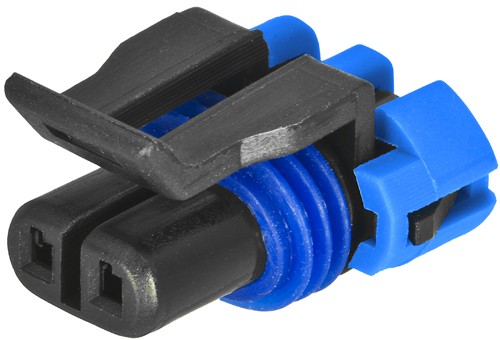

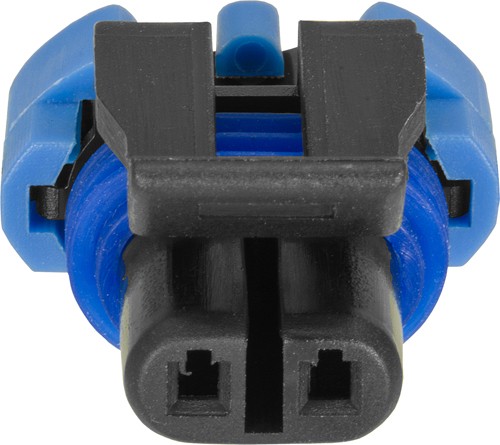

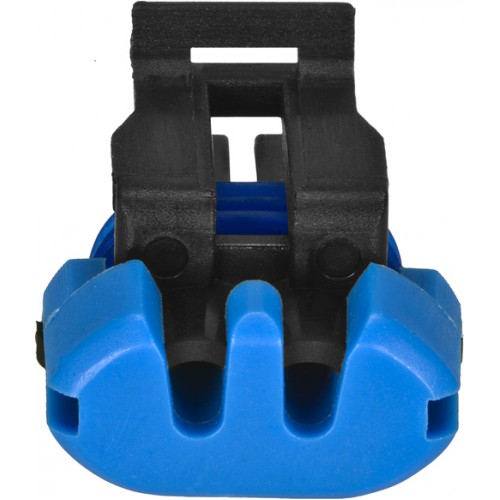

28217 - 2 Circuit MP150 series male connector kit (1pc)
General purpose sealed connector used with sensors and others.
Metri-Pack 150 connectors utilise individual wire seals. Wires are inserted through the wire seal , stripped, terminated, then pushed into the housing rear until seated / locked.
No mating half offered. Usually mates with embedded receptacle in sensor.

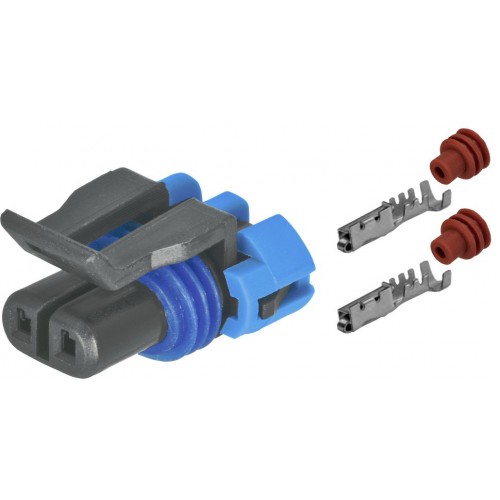

Kit comprises:
1 X male housing
2 X Wire seals
1 X Seal retainer
2 X 12048074 female terminals suit 2 to 3mm automotive / 0.5 to 1mm2 CSA / 18 to 16AWG cable
Specifications / features:
14 Amps continuous maximum current rating
Small overall dimensions
Low energy, low voltage capability
Excellent resistance to temperature, chemicals and abrasion
-40ºC to 125ºC temperature range
