282123 - 2 circuit MP150 series connector kit. (1pc)
General purpose sealed connector also used with Series 60 engine bottom timing sensor, temperature sensors GM, Nissan and others.
No mating half offered. Usually mates with embedded receptacle in sensor.

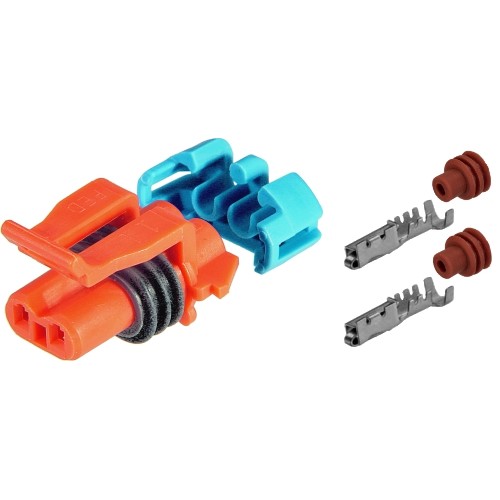

Kit Comprises:

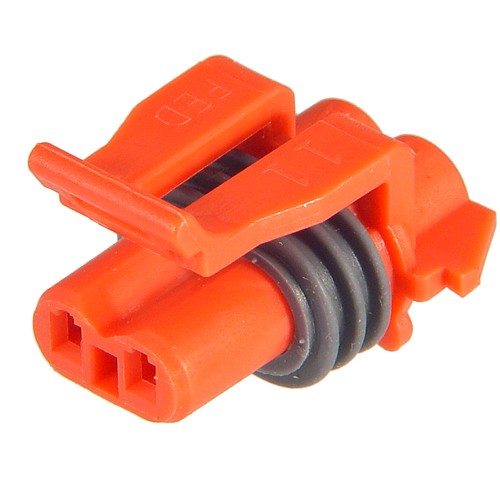

1 X 12052643 housing

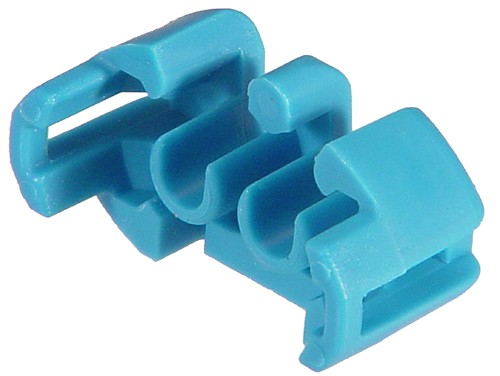

1 X 12052634 TPA
2 X 28795 wire seals

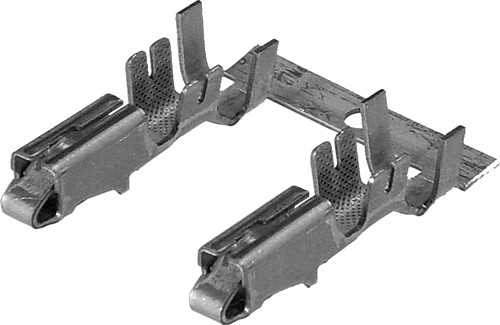

2 X 12048074 female terminals suit 2 to 3mm automotive / 0.5 to 1mm2 CSA / 18 to 16AWG cable
Specifications / features:
Connector Position Assurance (CPA)
Terminal Position Assurance (TPA)
14 Amps continuous maximum current rating
Terminal tab width = 1.5mm
Small overall dimensions
Low energy, low voltage capability
Excellent resistance to temperature, chemicals and abrasion
-40ºC to 125ºC temperature range
