282121 - 2 circuit MP150.2 series connector kit. (1pc)
General purpose sealed connector also used with Iveco transmission sensor, temperature sensors and others.
Metri-Pack 150.2 'Pull-to-Seat' connectors have an integrated cable seal. Wires are inserted through the cable seal at rear, passed out the mating side, stripped, terminated, then pulled back into the housing until seated / locked.
No mating half offered. Usually mates with embedded receptacle in sensor.

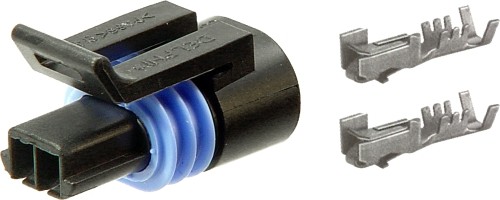

Kit comprises:

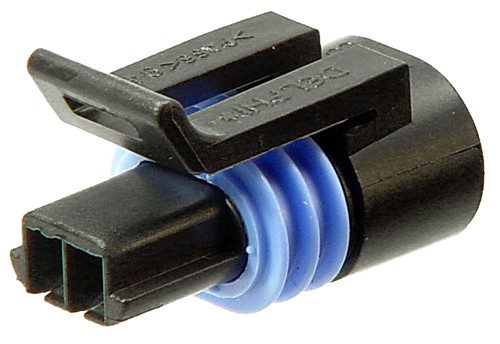

1 X 12162193 housing
2 X 12124075 female terminals suit 2 to 3mm automotive / 0.5 to 1mm2 CSA / 18 to 16AWG cable
Specifications / features:
Integrated cable seal
Terminal tab width = 1.5mm
14 Amps continuous maximum current rating
Small overall dimensions
Low energy, low voltage capability
Excellent resistance to temperature, chemicals and abrasion
-40ºC to 125ºC temperature range
