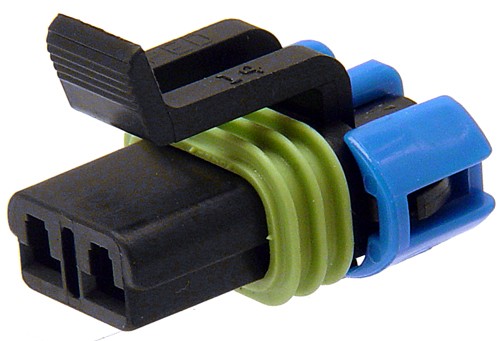

28212 - 2 circuit MP280 series connector kit. (1pc)
General purpose sealed connector also used with Iveco input / output sensor, Detroit D-DEC 2 throught DDEC 4 direct timing and low coolant warning sensors and others.
No mating half offered. Usually mates with embedded receptacle in sensor.

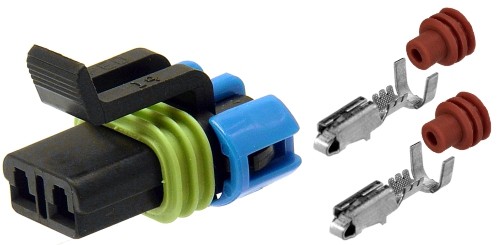

Kit comprises:
1 X 15300027 housing

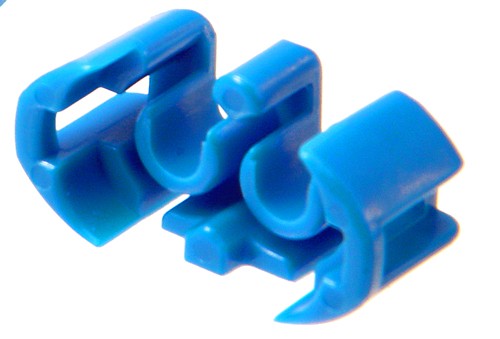

1 X 15300014 Blue TPA
2 X 12077411 female terminals suit 4 to 5mm automotive / 1 to 2mm2 / 14 to 12AWG cable
2 X 28604 wire seals suit 2 to 2.9mm diameter cable
Specifications / features:
Made from PA66 (Nylon)
Connector Position Assurance (CPA)
Terminal Position Assurance (TPA)
Terminal tab width = 2.8mm
30 Amps continuous maximum current rating
Small overall dimensions
Low energy, low voltage capability
Excellent resistance to temperature, chemicals and abrasion
Standard ISO 2.8mm configuration
-40ºC to 125ºC temperature range
