Taxi Bar Lamp

The LED combination bar lamp carries a five year LED lamp replacement warranty.

90100

High-level combination LED tail lamp

  • Enhances a vehicles traffic signals for better visibility and safety
  • Designed for under-mounting on roof racks & luggage racks of popular makes and profiles
  • Ideal for taxis, construction, roadwork, quarry/mining, escort/pilot, support/maintenance, 4WD vehicles
  • Corrosion-free aluminium/powder coated housing for extended service life
  • Wiring joints are sealed against water, moisture and dustv
  • Supplied with 4metres of cable with 1 spare core includedv
  • LED stop/tail/indicators comply with relevant ADRs (High-level tail lamp function is for off-road use only)
  • 12V operation only (24V available as special order)
  • Dimensions: 904mm(W) x 30mm(H) x 70mm(D)
  • Current draw@ 13.BVDC: Indicator lamp: 0.16A(each) I Stop lamp: 0.16A/Tail Lamp: 0.04A
  • Indicators can be used with optional 23235 dual head, multi-pattern LED flasher head to further enhance warning features where required

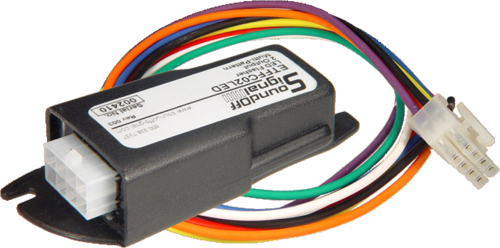

23235
2 head LED multi-pattern flasher unit.
For flashing standard LED lamps alternately.

  • Supplied with pre-wired connector.
  • Short circuit, reverse polarity and thermal protection (when used with a 1OA fuse).
  • Compact unit fits discretely inside the cab. Operating voltage: 8-30VDC
  • Current: 3A (max.) per flash channel Standby current: <5mA@12VDC
  • Flash patterns: 13 (alternating over both heads)
  • Flash unit size (W x D x H): 80x35x20mm Mounting hole centres: 73mm

May require the use of blocking diodes for some applications

23235
