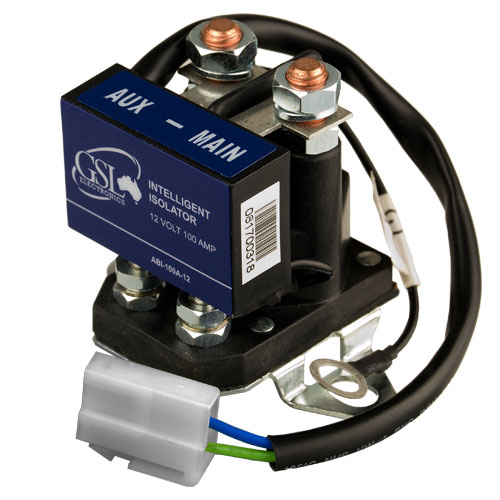

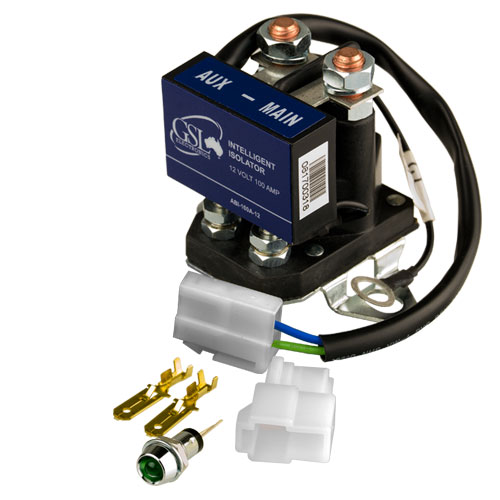

23070 Dual Battery Isolator Solenoid

Description

23070 Dual battery isolator solenoid

• 12VDC / up to 100A charging system
• Minimal voltage drop
• Delayed start feature
• Spike proof
• Override function
• Cut-in – 13.2VDC
• Cut-out – 12.4VDC
• Inrush current – 400A
• Detects and indicates faulty or no auxiliary battery connection
• Detects and indicates under or over voltage on main battery
• Over voltage protection isolates auxiliary battery from damage
• Override function allows emergency jump start
• Simple Installation – with 2 mounting points
• Alarm L.E.D
