1 Circuit reducer/charger

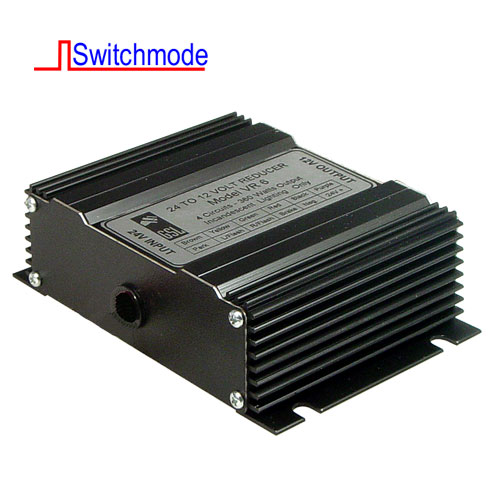

08010 – Circuit Reducer – Charger
Description
08010 – Circuit reducer/ charger
- 20-28VDC input
- 13.8VDC output
- 10A continuous automatic battery charging capacity
- Input to output protection
- Thermal protection
- Over-current protection
- Short circuit protection
- Standby current 15mA
- 91% efficient at full load
- LxWxH: 110x136x63mm
- For charging a 12V battery from a 24Vcource or charging the supply battery when using the 12V centre tap as a supply or for running 12V equipment from a 24V supply (charge equalising)
