Deutsch DT Backshells
Deutsch’s range of hard backshells suit their DT range of connectors. Whilst they do not increase the already high environmental rating of the connector, they are intended as a means to attach conduit, heatshrink or other fonns harness covering. The backshells also act as a cable strain-relief.

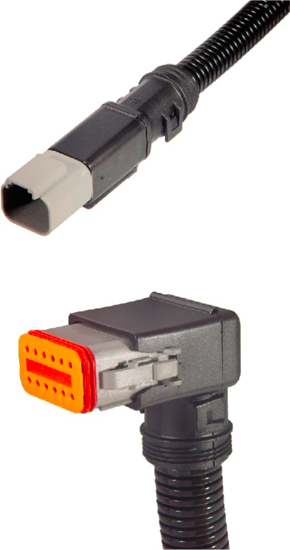

Deutsch DT Connector Backshells
- Simply clip onto the DT housing prior to assembly
- Quick to assemble hinged shell
- Black suits conduit
- Clips over loom tube of varying sizes – has multiple grip ranges
- Works with split and unsplit conduit sizes
- Works with heashrink- has grip ridges for attaching adhesive lined heatshrink
- No tools required for assembly
- No tools required for disassembly
- Reusable
- Available in straight or 90° degree angle
| P/No. | DT Housing | Angle | Suits Polyethylene Conduit | Suits Polyflex Conduit |
|---|---|---|---|---|
| DT2S-BS | 27912 | straight | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT2S-BS90 | 21912 | 90° | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT2P-BS | 27902 | straight | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT2P-BS90 | 27902 | 90° | 20007/200071/2001/200101 | 1200070/1200089/1200100 |
| DT3S-BS | 27913 | straight | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT3S-BS90 | 27913 | 90° | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT3P-BS | 27903 | straight | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT3P-BS90 | 27903 | 90° | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT4S-BS | 27914 | straight | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT4S-BS90 | 27914 | 90° | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT4P-BS | 27904 | straight | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT4P-BS90 | 27904 | 90° | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT&S-BS | 27916 | straight | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT6S-BS90 | 27916 | 90° | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT6P-BS | 27906 | straight | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT6P-BS90 | 27906 | 90° | 20007/200071/20010/200101 | 1200070/1200089/1200100 |
| DT8S-BS | 27918 | straight | 20010/200101 | 1200089/11200100/1200135 |
| DT8S·BS90 | 27918 | 90° | 20010/200101 | 1200089/11200100/1200135 |
| DT8P-BS | 27908 | straight | 20010/200101 | 1200089/11200100/1200135 |
| DT8P-BS90 | 27908 | 90° | 20010/200101 | 1200089/11200100/1200135 |
| DT12S-BS | 27911 | straight | 20010/200101/20013/200131/20016/200161 | 1200100/1200135/1200178 |
| DT12S-BS90 | 27911 | 90° | 20010/200101/20013/200131/20016/200161 | 1200100/1200135/1200178 |
| DT12P-BS | 27901 | straight | 20010/200101/20013/200131/20016/200161 | 1200100/1200135/1200178 |
| DT12P·BS90 | 27901 | 90° | 20010/200101/20013/200131/20016/200161 | 1200100/1200135/1200178 |
